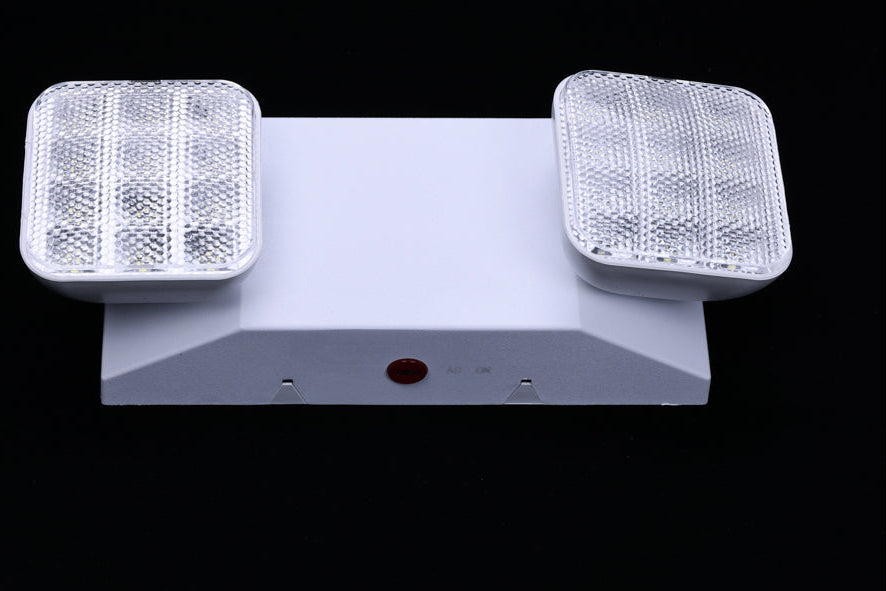

Self-Testing One Touch Twin Head LED Emergency Light

One Touch UL/cUL Twin Head LED Emergency Light

Self‑Diagnostic One Touch Test Model Features

• Self‑diagnostic system continually performs compliance testing for the life of the unit
• Only visual inspection required, fault codes clearly indicate any issues
• Automatic installation diagnostics confirm proper wiring and operation
  • 30‑second test runs automatically at 24 hours with pass/fail notification
  • 90‑minute test runs automatically at 26 hours with pass/fail notification
• Hi‑Vis Test Button / AC‑On Indicator
• 24/7 battery‑health monitoring ensures the unit is always ready for emergency operation
• True One Touch 30‑second monthly testing, no need to hold the button; tactile feedback confirms completion
• Double‑press the One Touch button to activate the 90‑minute annual test

Specifications

• Injection‑molded thermoplastic ABS housing, UL 94V‑0 flame rating
• Innovative, easy installation in minutes
• Suitable for wall‑mount applications
• Universal J‑box mounting pattern
• 120V/277VAC dual‑voltage operation
• Two ultra‑bright 12‑LED (2835 SMT) lamp heads for emergency mode
• Built‑in 3.6V 1000mAh nickel‑cadmium battery providing a minimum 90‑minute emergency operation
• Dimensions: H 5.04" × W 12.4" × D 4.13"
• UL 924 Listed
• UL 94 Flammability Rated
