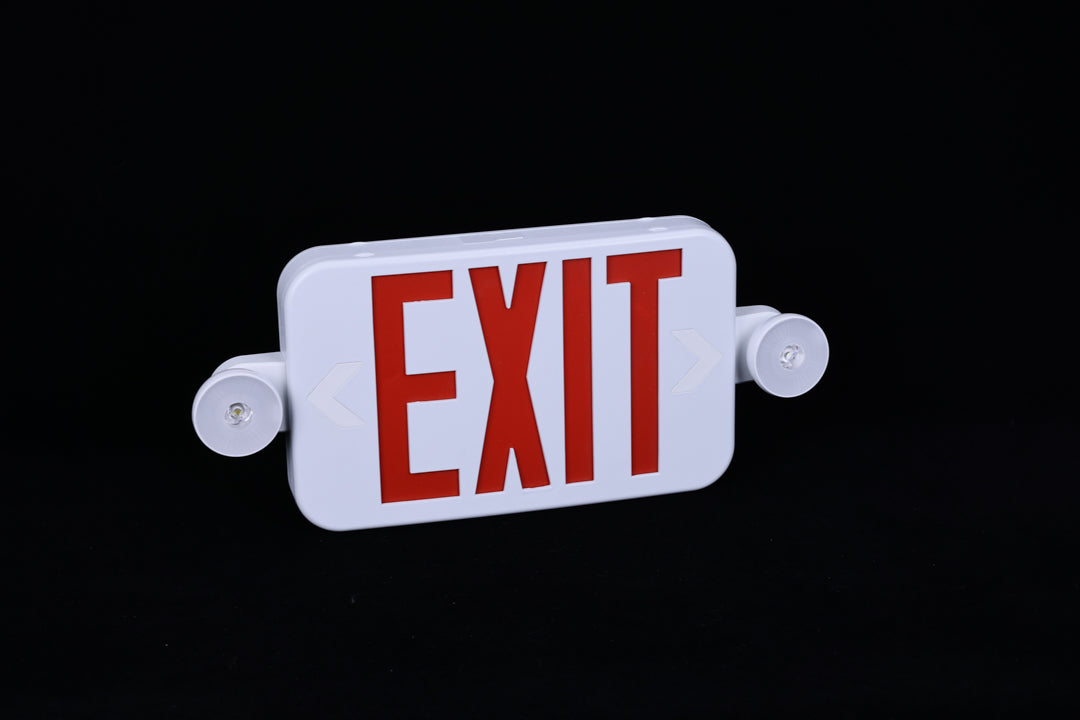

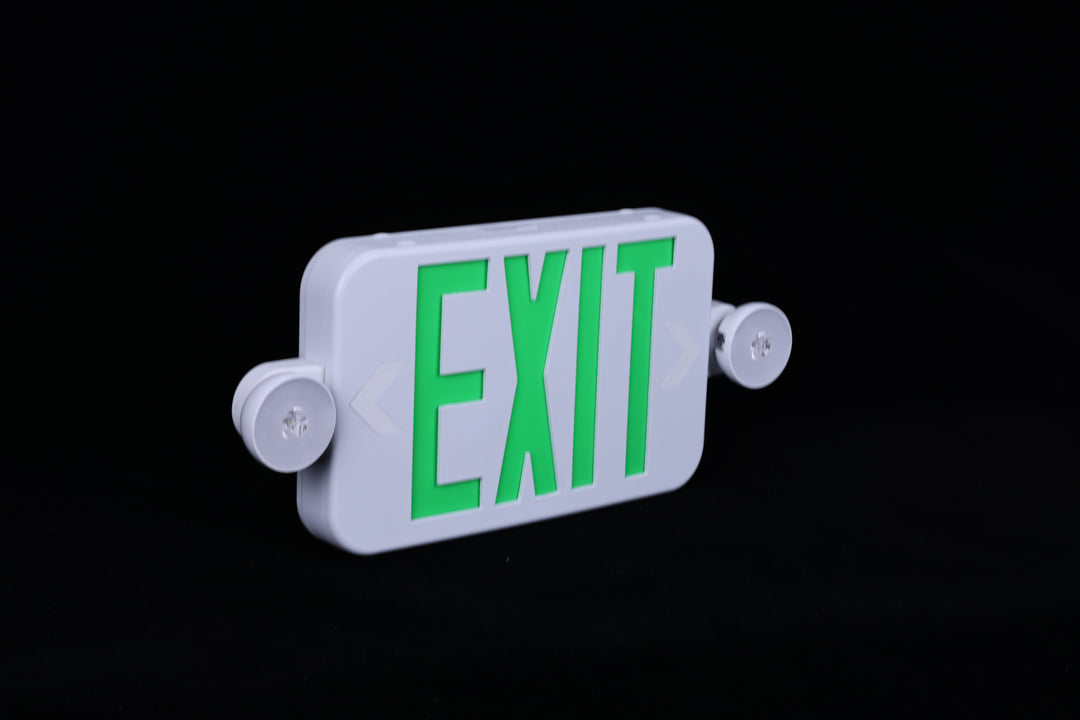

Self Testing One Touch Red and Green LED Emergency Exit Sign With Led Lights

One Touch Bi‑Color RED/GREEN LED Exit Sign Emergency Combo

Self‑Diagnostic One Touch Test Model Features

• Self‑diagnostic system continually performs compliance testing for the life of the sign
• Only visual inspection required, fault codes clearly indicate any issues
• Automatic installation diagnostics confirm proper wiring and operation
  • 30‑second test runs automatically at 24 hours with pass/fail notification
  • 90‑minute test runs automatically at 26 hours with pass/fail notification

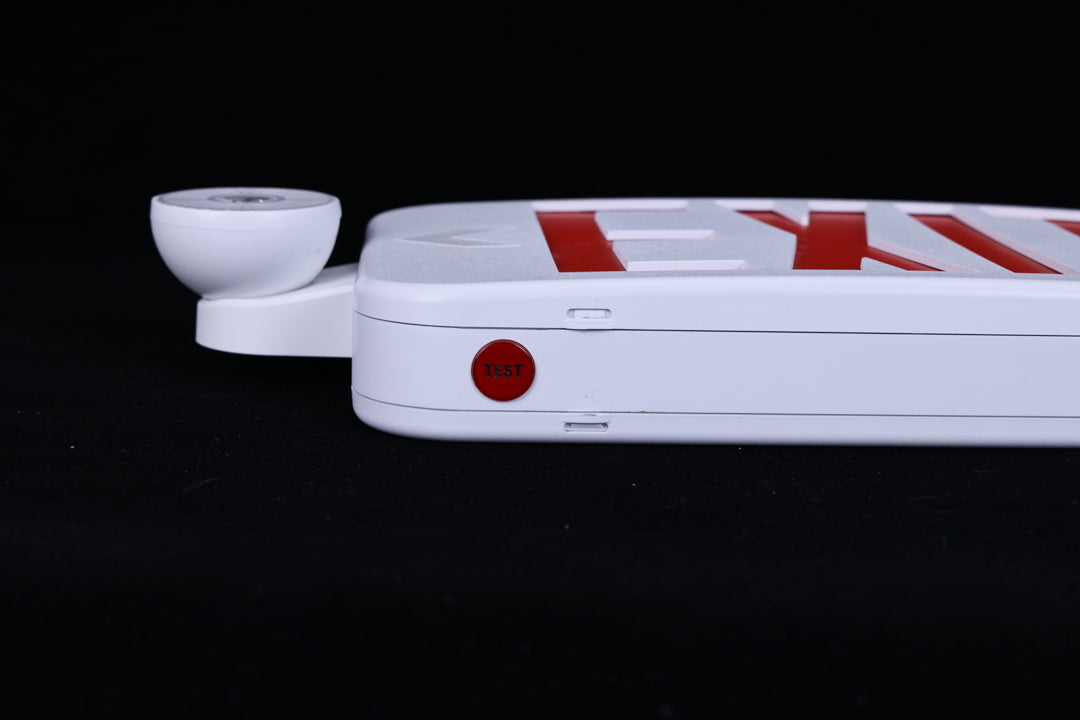

• Hi‑Vis Test Button / AC‑On Indicator
• 24/7 battery‑health monitoring ensures the sign is always ready for emergency operation
• True One Touch 30‑second monthly testing, no need to hold the button; tactile feedback confirms completion
• Double‑press the One Touch button to initiate the 90‑minute annual test

Specifications

• Self‑testing function included
• Injection‑molded thermoplastic ABS housing, UL 94V‑0 flame rating
• Innovative, easy installation in minutes

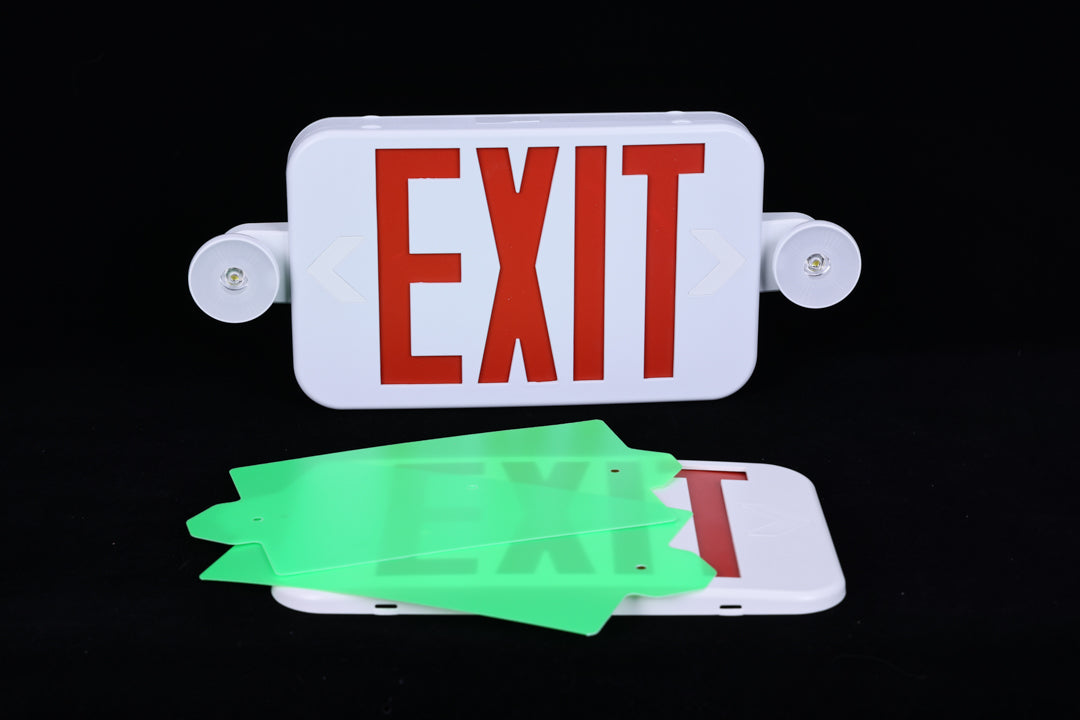

• 6" letters with 3/4" stroke; RED/GREEN bi‑color lettering
• Universal single or double‑face configuration
• Removable directional indicators
• Universal J‑box mounting pattern
• 120V–277VAC universal voltage operation
• 2 × 1W SMT LED lamp heads for emergency mode
• Built‑in 3.6V 1000mAh Ni‑MH battery providing a minimum 90‑minute emergency operation
• Dimensions: H 7.95" × W 16.1" × D 4.37"
• Maximum 24‑hour recharge time
• Test switch and charge indicator
• Indoor damp location rated (0° to 40°C)
• UL 924 Listed
• UL 94 Flammability Rated
